Selecting File->Load Design opens a design in the Control Panel and sends it to the connected machine(s).
To load a design using the Load Design option either click on Load Design from the toolbar using this icon or from the file drop down menu (File > Load Design)
Click > or Click File > Load Design

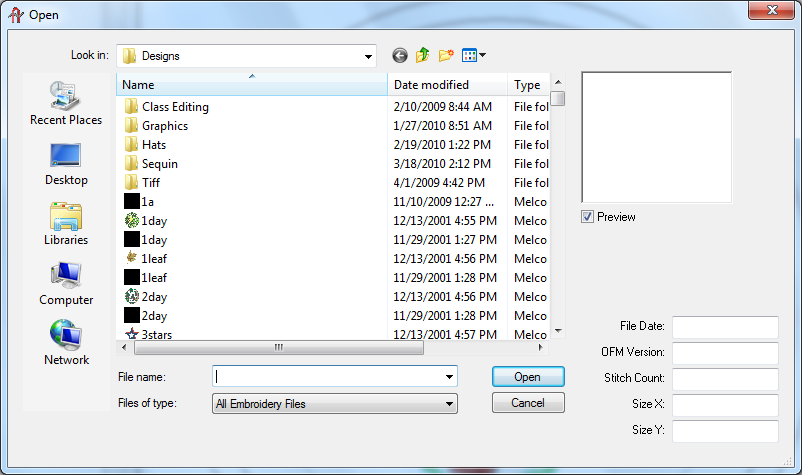

You will see a dialogue box that looks similar to this

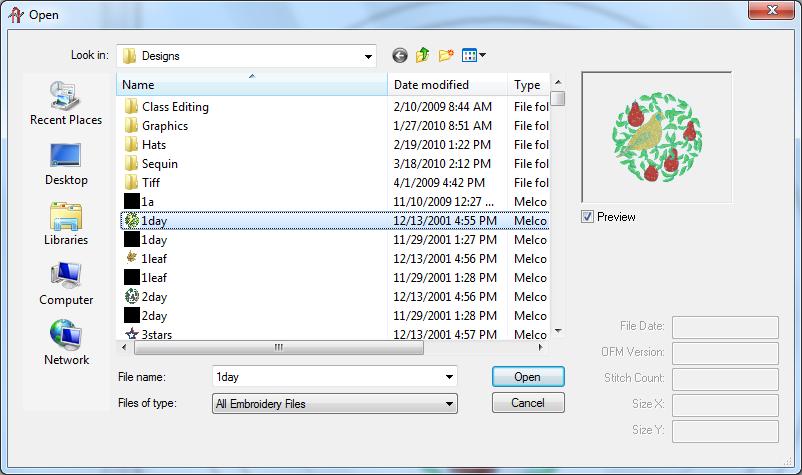

Select the design you want to load:
Either Double Click on the design or Click once on the design and then click the

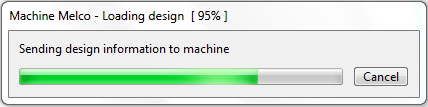

button. You should see the following.

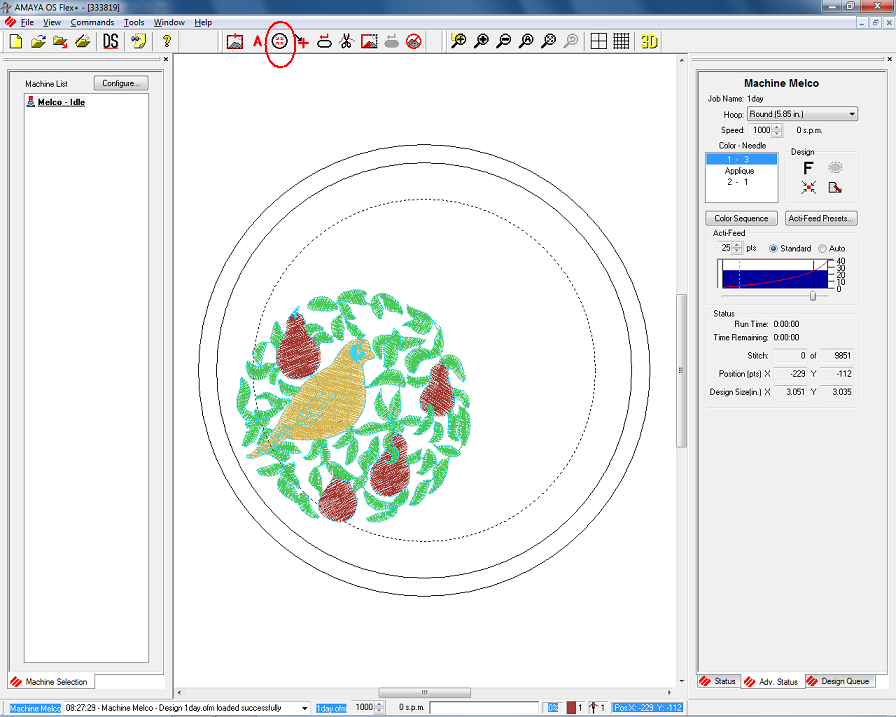

The design will be loaded to AOS however, it may not be correctly aligned.
To CENTER the design click the Center Hoop button
located on the tool bar (see above)
