Machine Settings Tab

2988647334.jpgMachine Connections Video

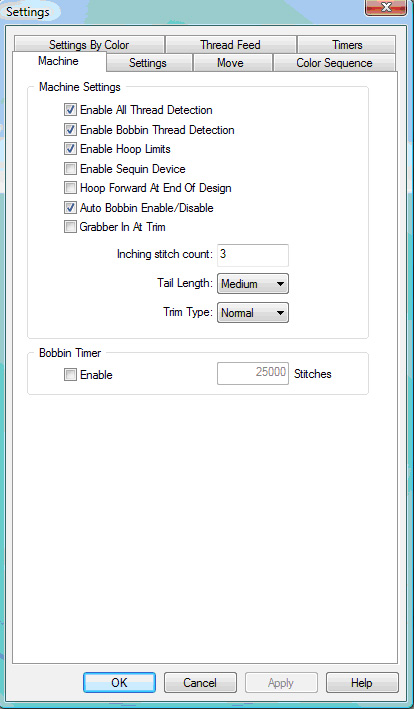

The Machine Settings tab allows you to set the following machine settings (which are stored in the machine):


Enable All Thread Detection - When this parameter is turned on, AMAYA OS will detect thread breaks.  If bobbin detection is enabled, AMAYA OS will also detect when the machine is out of bobbin thread or if there is a bobbin thread break.  The default for this parameter is On.

Enable Bobbin Thread Detection - When bobbin detection is enabled, AMAYA OS will detect when the machine is out of bobbin thread or if there is a bobbin thread break.  The default for this parameter is On.

Enable Hoop Limits - This option will prevent the machine from sewing through the selected hoop by checking the frame limits.  The default for this parameter is On.


CAUTION! If you do not enable hoop limits, you may cause damage to your AMAYA machine(s) and/or any hoops (including cap frames) that are installed.

Enable Sequin Device - When this option is selected, the AMAYA machine operates as if a sequin device is present.

Hoop Forward at End of Design - When this parameter is turned on, the machine will push the hoop forward after completing every design.  The default for this parameter is Off.

Auto Bobbin Enable/Disable - When this parameter is turned on, and you change from a hoop that is not for caps to a cap hoop, the bobbin detection is turned off. When you change from a cap hoop to a hoop that is not for caps, bobbin detection is turned on.

Grabber in at Trim - If this field is checked the grabber will stay at the “in” position after the trim cycle.

Inching Stitch Count - The quantity of "slow stitches" the machine will make at the beginning of sewing before it goes to full speed.  The default quantity for this parameter is 5.

Tail Length - This parameter (choices are short, medium, and long) refers to the length of thread tail left after a trim.  The default is medium tail.

Trim Type - The AMAYA can be set to trim differently for metallic thread than other threads.  When sewing with metallic thread, this parameter should be set to metallic; otherwise it should be set to normal.  If you are sewing a design with both metallic and other thread types, you can use Needle Settings on the Settings by Color tab to set the trim type to metallic for specific needles.

Bobbin Timer - When Enable is checked under the Bobbin Timer feature, the machine will automatically tell you to replace your bobbin when you have reached the number of stitches you specified. Generally, 25,000 is a good number to set for the Bobbin Timer stitch count.
