Click on a menu item below to learn more.
Machine Settings Tab Video

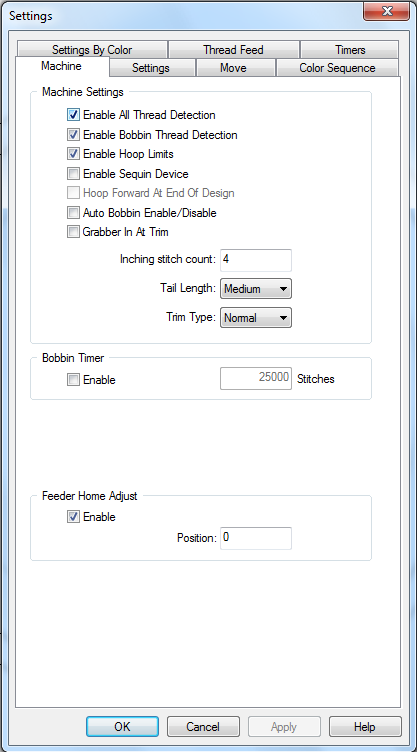

The Machine Settings tab allows you to set the following machine settings (which are stored in the machine):
When this parameter is turned on, AMAYA OS will detect thread breaks. If bobbin detection is enabled, AMAYA OS will also detect when the machine is out of bobbin thread or if there is a bobbin thread break. The default for this parameter is On.
When bobbin detection is enabled, AMAYA OS will detect when the machine is out of bobbin thread or if there is a bobbin thread break. The default for this parameter is On.
This option will prevent the machine from sewing through the selected hoop by checking the frame limits. The default for this parameter is On.
|
|
CAUTION! If you do not enable hoop limits, you may cause damage to your AMAYA machine(s) and/or any hoops (including cap frames) that are installed. |
When this option is selected, the AMAYA machine operates as if a sequin device is present.
When this parameter is turned on, the machine will push the hoop forward after completing every design. The default for this parameter is Off.
When this parameter is turned on, and you change from a hoop that is not for caps to a cap hoop, the bobbin detection is turned off. When you change from a cap hoop to a hoop that is not for caps, bobbin detection is turned on.
If this field is checked the grabber will stay at the “in” position after the trim cycle.
The quantity of "slow stitches" the machine will make at the beginning of sewing before it goes to full speed. The default quantity for this parameter is 5.
This parameter (choices are short, medium, and long) refers to the length of thread tail left after a trim. The default is medium tail.
The AMAYA can be set to trim differently for metallic thread than other threads. When sewing with metallic thread, this parameter should be set to metallic; otherwise it should be set to normal. If you are sewing a design with both metallic and other thread types, you can use on the tab to set the trim type to metallic for specific needles.
When Enable is checked under the Bobbin Timer feature, the machine will automatically tell you to replace your bobbin when you have reached the number of stitches you specified. Generally, 25,000 is a good number to set for the Bobbin Timer stitch count.
In the small percentage of AMAYAs that exhibit clicking when color changing, this feature can be used to alleviate that issue. Read the Thread Feeder Home Adjust section for the full procedure.
