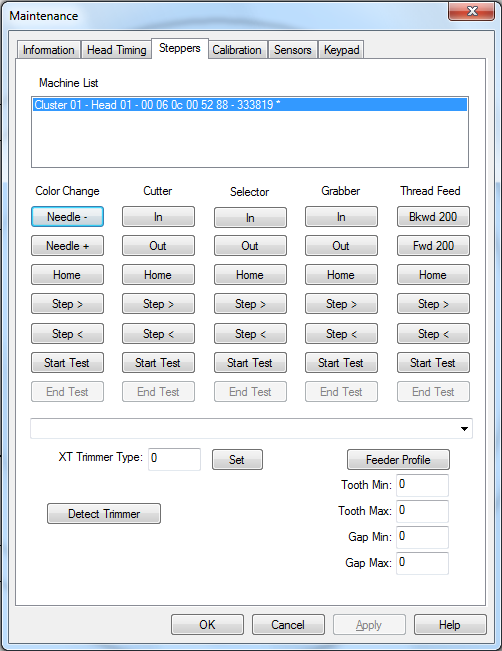

Click on a menu item below to learn more.
- Moves Needle Case to the Left one needle
- Moves Needle Case to the Right one needle
- Returns Needle Case to a home position (moves to the mechanical limit past needle 1)
- Moves Needle Case to the right one motor step
- Moves Needle Case to the lest one motor step
- Begins a color change test
- Ends the color change test
- XT - Moves the Cutter to the Home position / XTS or XT non ACA - not functional
- XT - Moves the Cutter to the full out position / XTS or XT non ACA - not functional
- XT - Moves the Cutter to the Home position / XTS or XT non ACA - not functional
- XT - Moves the Cutter one step out / XTS or XT non ACA - not functional
- XT - Moves the Cutter in step out / XTS or XT non ACA - not functional
- Starts a functional trim test (XT non ACA only)
- Ends test
- XT - Moves the Cutter to the Home position / XTS or XT non ACA - not functional
- XT - Moves the Cutter to the full out position / XTS or XT non ACA - not functional
- XT - Moves the Cutter to the Home position / XTS or XT non ACA - not functional
- XT - Moves the Cutter one step out / XTS or XT non ACA - not functional
- XT - Moves the Cutter in step out / XTS or XT non ACA - not functional
- Starts a functional trim test (XT non ACA only)
- Ends test
- Moves the Grabber in (Home).
- Moves the Grabber out
- Moves the Grabber to the Home position
- Moves the grabber one motor step
- Moves the grabber one motor step
- Begins a grabber test
- Ends the test
- Moves the drive Thread Feed drive motor backward 200 steps
- Moves the drive Thread Feed drive motor forward 200 steps (used commonly for the Thread Feed 200 test)
- Moves the Thread Feed motor to the Home position
- Steps the Thread Feed motor one step forward
- Steps the Thread Feed motor one step back
- Starts a Thread Feed Test
- Ends the test
- This will display the current software setting for trimmer type.
0 = NON ACA standard XT trimmer
1 = NOT USED
2 = ACA (Advanced Cutting Action ) Trimmer (XTS or XT with ACA)
- This will automatically detect the trimmer type when pressed
- Rotates the Thread Feed motor one full revolution and allows a sensor to analysis the tooth profile of the drive gear and populates the values listed under the button.
