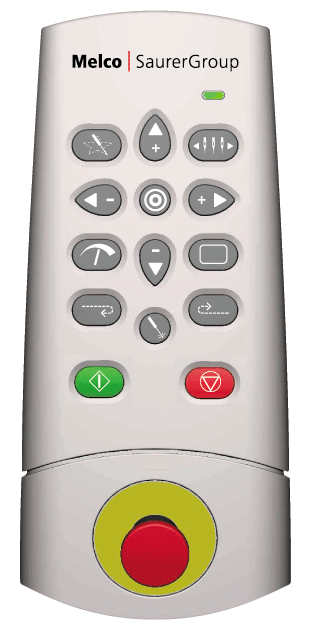

Click on the keypad buttons for information about the button functions.
.
The following table lists all of the AMAYA keypad functions and key combinations.
|
Function |
Press these key(s) |
Keypad Pictures |
Notes |
|
To Start Sewing |
Start |
|
Press the stop key to stop sewing |
|
To Stop Sewing |
Stop |
|
Press the start key to start sewing |
|
To Start All (Flex) |
Adjust + Start |
|
Pressing these buttons on any machine will start all machines in a Flex cluster. Pressing the Start button only on one machine will start that machine. |
|
To Stop All (Flex) |
Hoop + Stop |
|
Pressing these buttons on any machine will stop all machines in a Flex cluster. Pressing the Stop button only on one machine will stop that machine. |
|
Copy XY Position |
Adjust + Hoop |
|
Pressing these buttons on one machine will bring all other heads in the Flex cluster to the XY position of that machine. |
|
Select Flex Machine |
Center |
|
Selects the Flex machine (will be selected machine in AMAYA OS) |
|
To move the hoop up |
Hoop + Down Arrow |
|
Always trace after moving |
|
To move the hoop down |
Hoop + Up Arrow |
|
Always trace after moving |
|
To move the hoop left |
Hoop + Right Arrow |
|
Always trace after moving |
|
To move the hoop right |
Hoop + Left Arrow |
|
Always trace after moving |
|
To move the hoop down and to the left (moves needle position up and to the right in relation to the hoop) |
Hoop + Right + Up |
|
Always trace after moving |
|
To move the hoop up and to the left (moves needle position down and to the right in relation to the hoop) |
Hoop + Right + Down |
|
Always trace after moving |
|
To move the hoop down and to the right (moves needle position up and to the left in relation to the hoop) |
Hoop + Left + Up
|
|
Always trace after moving |
|
To move the hoop up and to the right (moves needle position down and to the left in relation to the hoop) |
Hoop + Left + Down |
|
Always trace after moving |
|
To center the current hoop |
Hoop + Center |
|
Center hoop before beginning to sew |
|
To trace the design |
Hoop + Trace |
|
Repeat to trace again |
|
To frame back one stitch at a time |
Hold down the Frame Back key |
 |
Press the stop key to stop framing |
|
To frame forward one stitch at a time |
Hold down the Frame Forward key |
 |
Press the stop key to stop framing |
|
To increase the sewing speed |
Adjustment + Up Arrow |
  |
The speed will increase 50 spm each time pressed |
|
To decrease the sewing speed |
Adjustment + Down Arrow |
|
The speed will decrease 50 spm each time pressed |
|
To move the needlecase to the right |
Needlecase key + Right Arrow |
  |
|
|
To move the needlecase to the left |
Needlecase key + Left Arrow |
 |
|
|
To color change to the next color |
Needlecase key + Up Arrow |
|
|
|
To color change to the previous color |
Needlecase key + Down Arrow |
|
|
|
To turn the laser on |
Laser |
|
This will allow you to see the active needle position |
|
Toggle front grabber |
Adjustment + Center |
|
Toggle to thread the needle |
|
Trim Immediate |
Adjustment + Needlecase |
|
|
|
To manually feed thread |
Laser + Up Arrow |
|
Manually feeds thread on the current needle |
|
To put a machine in sleep mode |
Press the Stop key for 3 seconds |
|
Disables the machine |
|
To wake a machine from sleep mode |
Press the Start key for 3 seconds |
|
Enables the machine |
