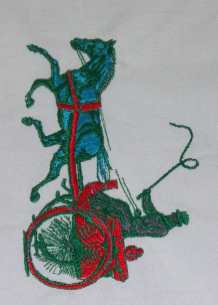

Figure 1 - Orientation Test Design
The orientation test design should be sewn twice. Once as shown above, and once again by changing the direction of the orientation. A comparison of the two should be consistent with each other with no changes in appearance or stitch length. In addition, there should be no thread breaks or pull-outs in this design.
The orientation test should be sewn on one layer of white broad cloth (Melco PN: 344754-01) (or any white polyester material) or equivalent with one layer of backing (ARC: C20162210).
