Thread Break Test

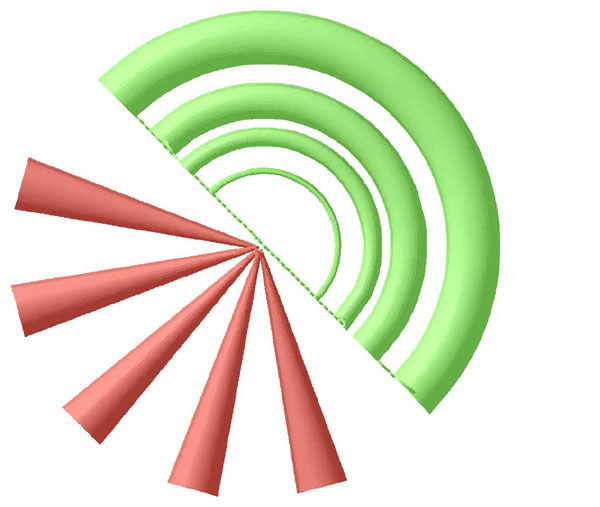

Figure 1 - Thread Break Test Design



The thread break test design is helpful to check for thread breaks by running several different stitch lengths and types in several directions.  There should be no thread breaks, pull-outs, or long tails when sewing this design.

The thread break test should be sewn on one layer of white broad cloth (Melco PN: 344754-01) (or any white polyester material) or equivalent with one layer of backing (ARC PN: C20162210).
