The trimmer function test is very helpful in that it will help to isolate mechanical and electrical failures of the trimmer system. The two errors most likely to occur during this test are:
Selector Time Out Error - the sensors fail to detect home within the specific amount of time programmed into the firmware and software.
Trimmer Time Out Error - the sensors fail to detect home within the specific amount of time programmed into the firmware and software.
Test Procedures:
1. Remove the needle plate and bed plate and verify that there are no obstructions.
2. Remove the bobbin and use compressed air to blow out any residue collected in the rotary hook area.
3. Clean out the trimmer area and lubricate the moveable knife following the steps prescribed in "Moveable Knife Lubrication".
4. Turn the machine ON and start up the AMAYA OS.
Figure 1 - AMAYA OS Steppers Menu
5. Click on the "Maintenance" menu from the AMAYA OS Main Menu and select the "Steppers" tab (Figure 1).
6. Under the "Cutter" column click on the "Start Test" button.
Figure 2 - AMAYA OS Sensors Menu

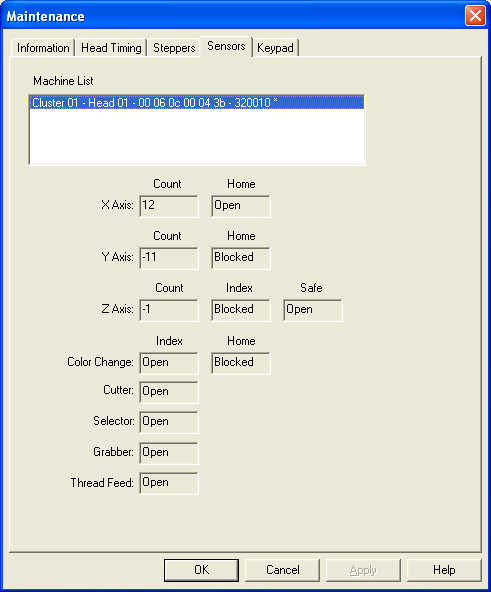

7. Click on the "Sensors" tab and observe the trimmer status. It should be alternating between "Open" and "Blocked". In addition, the knife should be extending and retracting back under the adjustable knife without any obstruction or resistance. If all this is happening, everything in the trimmer circuitry is good.
8. Return to the "Steppers" menu and click on "End Test" button to stop the test.
9. If you still get cutter related errors, take a look at the moveable knife adjustment and the condition of the under thread presser.
