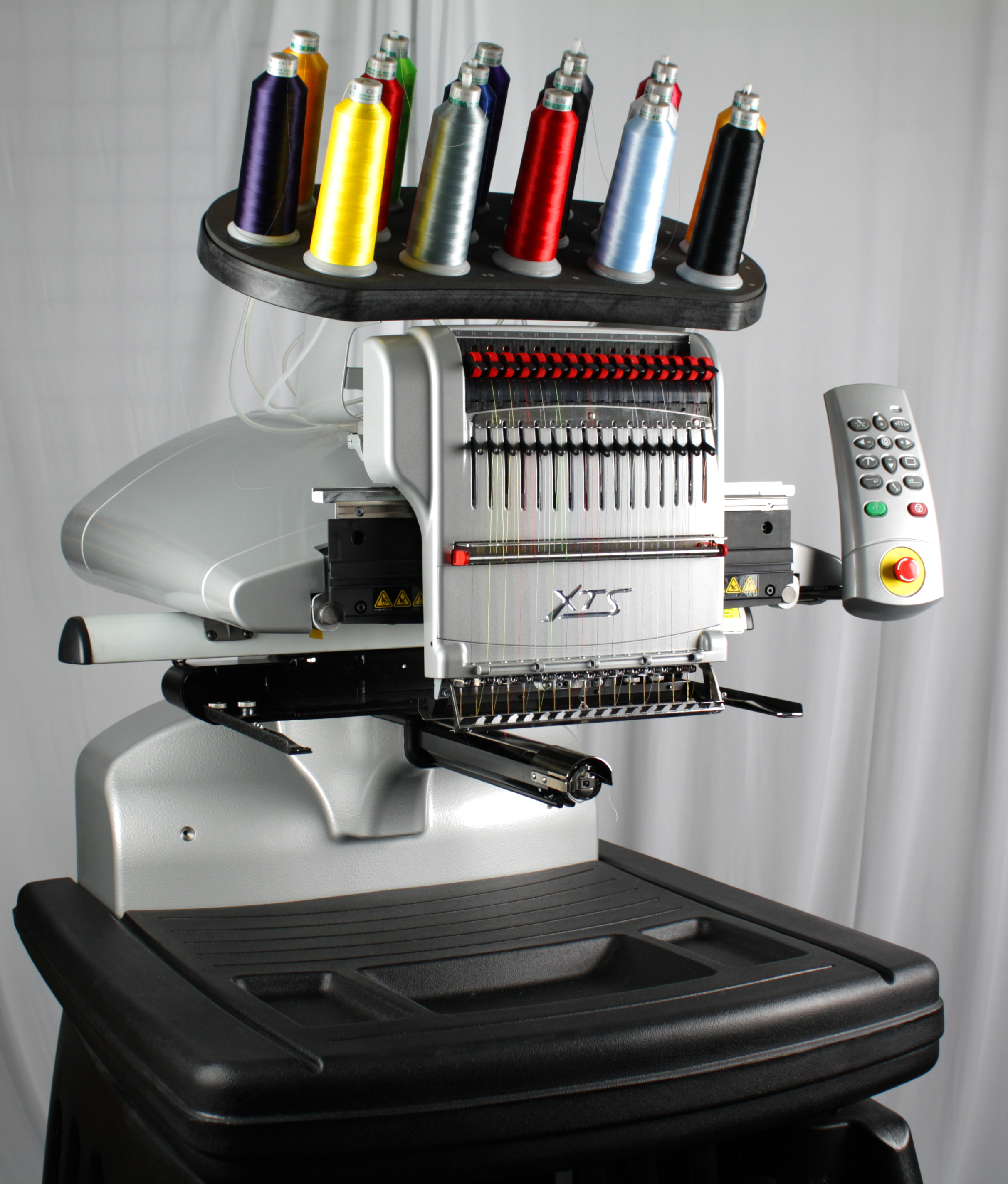

Front View

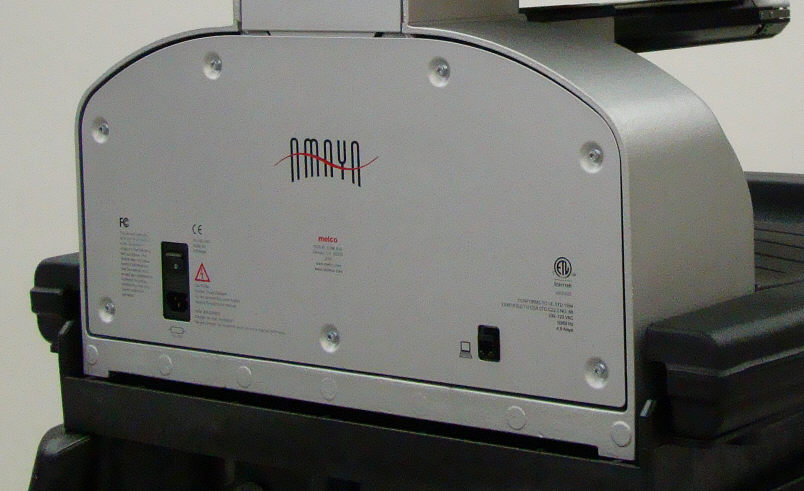

Rear View

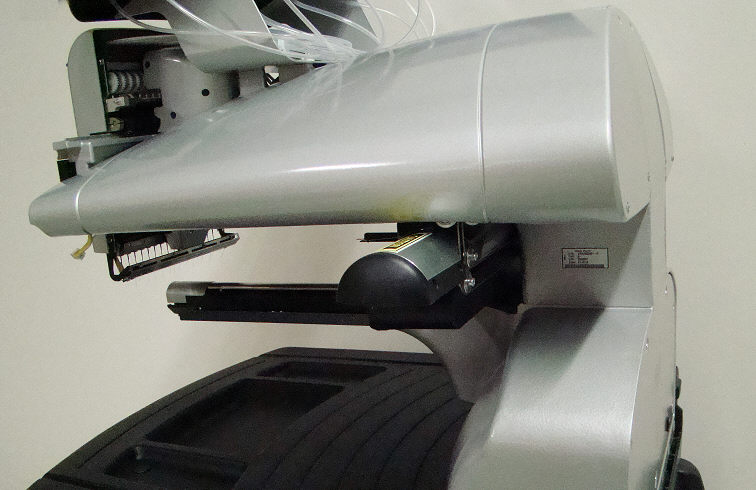

Side View
|
For indoor use only |
|
|
Type/# of Heads |
1...30/ Arm & Bed |
|
# Needles |
16 |
|
Maximum Tubular Frame Size (XxY) |
500mm x 430mm (19.7"x 16.9") |
|
Maximum Sew Field/Tubular Frame (XxY) |
410mm x 400mm (16.1"x15.7") |
|
Maximum Sash Sew Field (XxY/Diagonal) |
410mm x 400mm/573mm (16.1"x 15.7"/22.6") |
|
Removable Table Top |
Yes (optional) |
|
Conventional Cap Frame |
152mm x 70mm (5.9"x 2.75") |
|
Min/Max Sew Speed Flats |
300-1500 spm |
|
Min/Max Sew Speed Caps |
300-1200 spm |
|
Stitch Length Range |
Only Limited by Hoop Size |
|
User Interface |
AMAYA Operating System (AOS) : ability to scale design and recalculate stitches, design filter, rotate and mirror design, assign colors to needles, 3D color representation of design, view design in hoop |
|
Machine Configuration |
Up to 30 |
|
Self-Diagnostics Capability |
Retrieves relevant machine data for troubleshooting |
|
Simplified User Interface |
Step by Step Guide Software |
|
Design Memory |
Limited only by hard drive, Max file size 500k |
|
Design Scaling |
Yes with Stitch Regeneration Capability |
|
Pre-Sew Trace |
Laser |
|
Needle to Garment, Garment to Hoop Position |
Laser Positioning System |
|
Thread Feed Technology |
Patented Acti-Feed |
|
Thread Break Detection |
Upper & Lower Electronic Force Gauge Sensor |
|
Automatic Backup |
Yes |
|
Automatic Trimmer |
Yes |
|
Lighting Type Cold Bright |
Cold bright LED |
|
Power Supply (V) |
90-260V (Single Phase, 50/60 HZ, 4A) |
|
Power Consumption (W) |
Typical: 200 Watts Max: 650 Watts |
|
Temperature Range |
15-40° C |
|
Humidity |
Max 85% RH |
|
Installation Category (overvoltage) |
II |
|
Pollution Degree |
2 |
|
Motor Type(s) |
Servo |
|
Motor Capacity (kV) |
X and Z: 100 Watts Y: 250 Watts |
|
Machine Construction Material |
Aluminum |
|
Physical Specifications with Cart |
|
|
Width |
724mm (28.5") |
|
Height |
1584mm (62.4") |
|
Depth |
944mm (37.2") |
|
Weight |
95.4kg (210.3 lbs) |
|
Physical Specifications without Cart |
|
|
Width |
724mm (28.5") |
|
Height |
950.9mm (37.4") |
|
Depth |
737mm (29.0") |
|
Weight |
75kg (165lbs) |
|
For indoor use only |
|
|
# Needles |
16 |
|
Maximum tubular flat hoop size |
360mm x300mm (14.17"x 11.8") |
|
Removable Table Top |
Yes (optional) |
|
Conventional Cap Frame |
152mm x 70mm (5.9"x 2.75") |
|
Min/Max Sew Speed Flats |
300-1000 spm |
|
Min/Max Sew Speed Caps |
300-1000 spm |
|
Stitch Length Range |
Only Limited by Hoop Size |
|
User Interface |
AMAYA Operating System Lite only - (AOS Lite) |
|
Machine Configuration |
Single Head |
|
Self-Diagnostics Capability |
N/A |
|
Simplified User Interface |
Step by Step Guide Software |
|
Thread Feed Technology |
Patented Acti-Feed |
|
Thread Break Detection |
Upper & Lower Electronic Force Gauge Sensor |
|
Automatic Backup |
No |
|
Automatic Trimmer |
Yes |
|
Lighting Type Cold Bright |
Cold bright LED |
|
Power Supply (V) |
90-260V (Single Phase, 50/60 HZ, 4A) |
|
Power Consumption (W) |
Typical: 200 Watts Max: 650 Watts |
|
Temperature Range |
15-40° C |
|
Humidity |
Max 85% RH |
|
Installation Category (overvoltage) |
II |
|
Pollution Degree |
2 |
|
Motor Type(s) |
Servo |
|
Motor Capacity (kV) |
X and Z: 100 Watts Y: 250 Watts |
|
Machine Construction Material |
Aluminum |
|
Physical Specifications with Cart |
|
|
Width |
724mm (28.5") |
|
Height |
1584mm (62.4") |
|
Depth |
944mm (37.2") |
|
Weight |
95.4kg (210.3 lbs) |
|
Physical Specifications without Cart |
|
|
Width |
724mm (28.5") |
|
Height |
950.9mm (37.4") |
|
Depth |
737mm (29.0") |
|
Weight |
75kg (165lbs) |
