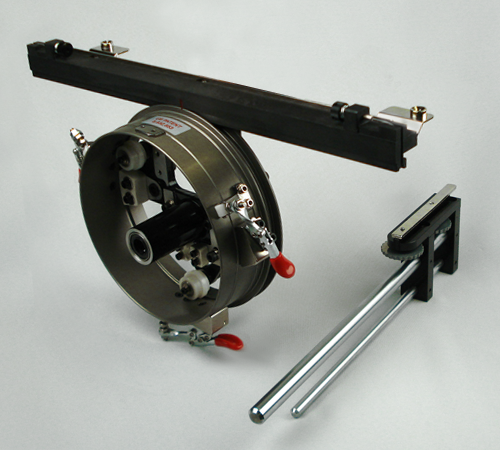

Cap Frames & Micro Clamps used with the Graphite Wide Angle Driver


The sections below show different cap frames for use with the graphite wide angle driver. The appropriate hoop selection for the graphite wide angle driver is shown to the below each frame. If the appropriate frame does not show up in the hoop selection list, you will need to customize the hoop list.

The micro or "pocket" clamps follow the cap frames.



 Cap Frames

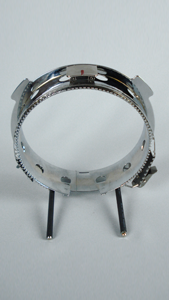

XTS WACF

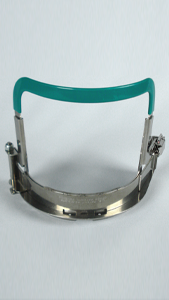

CCF

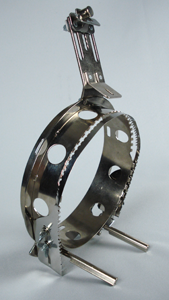

XT WACF

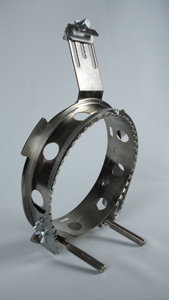

WACF

Select "Graphite XTS WACF"

Select "Graphite CCF"

Select "WACF"

Select "Graphite XT WACF"


Micro "Pocket" Clamps



2.5" x 3.75" Micro Clamp

3" x 3.75" Micro Clamp

3.5" x 3.75" Micro Clamp







Select "Graphite Micro (2.6 x 3.7 in)"

Select "Graphite Micro (3.1 x 3.7 in)"

Select "Graphite Micro (3.6 x 3.7 in)"
