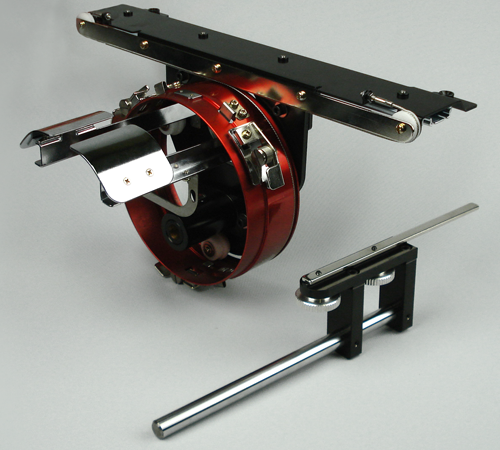

Cap Frames & Micro Clamps used with the Red Wide Angle Driver


The sections below show different cap frames for use with the red wide angle driver. The appropriate hoop selection for the red wide angle driver is shown to the below each frame. If the appropriate frame does not show up in the hoop selection list, you will need to customize the hoop list.

The micro or "pocket" clamps follow the cap frames. Note: You must remove the cap support wings from the red wide angle drive to utilize the CCF or the Micro Clamps.



 Cap Frames



XTS WACF

CCF



Select "Red XTS WACF"

Select "Red CCF"



Must Remove Cap Support Wings to use with the Red Wide Angle Driver



Micro "Pocket" Clamps



2.5" x 3.75" Micro Clamp

3" x 3.75" Micro Clamp

3.5" x 3.75" Micro Clamp







Select "Red Micro (2.6 x 3.7 in)"

Select "Red Micro (3.1 x 3.7 in)"

Select "Red Micro (3.6 x 3.7 in)"

Must Remove Cap Support Wings to use with the Red Wide Angle Driver
