Cap Supports:

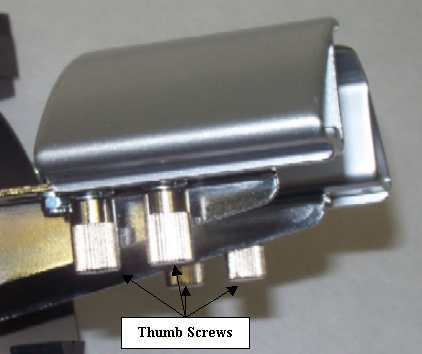

Figure 1 - Cap Supports
If you are experiencing registration or sew quality problems in parts of your design, you may have to adjust the cap supports (see Figure 1 above).
For registration or sew quality problems in the lower part of the design (nearest the brim) move the cap supports toward the driver.
For registration or sew quality problems in the upper part of the design, move the cap supports away from the driver.
To move the cap supports, follow these instructions:
1. Loosen the 4 thumb screws (2 on each side) holding the cap supports.
2. Slide the cap supports in or out. Make sure you move both sides equally. Use the ruler marks on the cap supports to verify this.
3. Tighten the 4 thumb screws. Use the scales on the cap support arms to help you align the cap supports.
