Cap Frame:
The strap on the cap frame may need to be adjusted for different caps, following these steps:

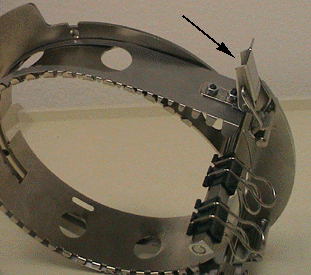

1. Close the cap frame but do not fasten the latch (see the following image).
2. Loosen the 2 wing nuts on the strap (see picture below).
3. Slide the frame (loosening or tightening its grip on the cap) to its new position.
|
|
CAUTION!! Do not over-tighten the strap on the cap frame. If the strap is too tight (and the clip is difficult to close) you may damage the frame. |
4. Re-tighten the 2 wing nuts.
