The Operators Kit contains many of the tools required for the assembly of the cart and initial maintenance of the machine. The rest of the tools will be used in other adjustments and procedures of your machine.
|

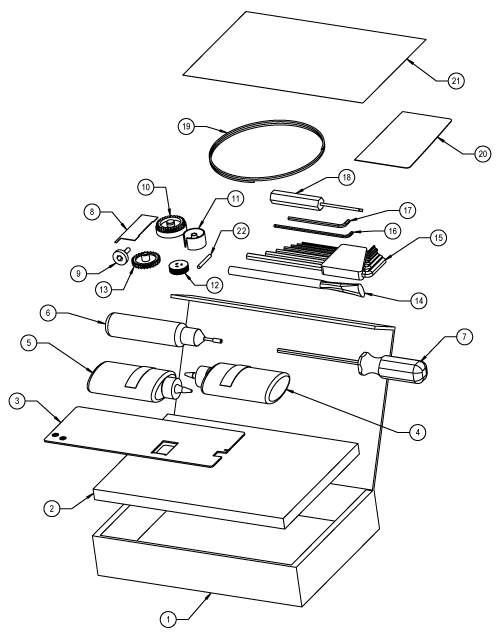

Item # |
Description | Notes |
|
1 |
Operator's Kit Box | |
|
2 |
Packaging Foam | |
|
3 |
X-Cable Tension Gauge | Used in the tensioning of the x-cable. |
|
4 |
Emb Polymer Grease | Used in a variety of maintenance procedures. |
|
5 |
Multi-Purpose Grease | Used in a variety of maintenance procedures. |
|
6 |
Oiler | Used in a variety of maintenance procedures. |
|
7 |
4mm Ball End Hex Driver | Used mainly in the adjustment of wide angle drivers. |
|
8 |
Combination Gauge | Used in multiple technical adjustments. |
|
9 |
Thumb Screw | Replacement Part |
|
10 |
Thread Feed Roller | Replacement Part |
|
11 |
Bobbin Case | Replacement Part |
|
12 |
Thread Feed Pinch Roller | Replacement Part |
|
13 |
Thread Feed Gear | Replacement Part |
|
14 |
Acid Brush | For the application of Emb Polymer Grease |
|
15 |
7 Piece Hex Key Set | Used in a variety of maintenance procedures and hoop arm placement. |
|
16 |
2.5mm Short Arm Ball End Hex Wrench | Used in multiple technical adjustments. |
|
17 |
3mm Short Arm Hex Wrench | Used in multiple technical adjustments. |
|
18 |
Small Straight Screwdriver | Used mainly in needle replacement and bobbin tensioning. |
|
19 |
Monofilament | Used when completing the upper threading. |
|
20 |
User Interface Menu Label | Used to better understand the keypad operations. |
|
21 |
Oiler Instructions | |
|
22 |
Needle Orientation Magnet (PN 34274) | Used for greater accuracy when replacing a needle. |
